Comparison of Mean Average Errors of different types of Models

In this blog,we compare the MAEs of different models, when we change the layers.

You can use the .ipnyb notebook that is given with the repo by downloading and starting a kernel.

• For local computer, use jupyter notebook
• For cloud usage, checkout Google colab

import tensorflow as tf
import numpy as np
import matplotlib.pyplot as plt

The following cell is simply used to define functions which enables us to create synthetic series, just like the previous exercise.

def plot_series(time, series, format="-", start=0, end=None):
    plt.plot(time[start:end], series[start:end], format)
    plt.xlabel("Time")
    plt.ylabel("Value")
    plt.grid(False)

def trend(time, slope=0):
    return slope * time

def seasonal_pattern(season_time):
    """Just an arbitrary pattern, you can change it if you wish"""
    return np.where(season_time < 0.1,
                    np.cos(season_time * 6 * np.pi),
                    2 / np.exp(9 * season_time))

def seasonality(time, period, amplitude=1, phase=0):
    """Repeats the same pattern at each period"""
    season_time = ((time + phase) % period) / period
    return amplitude * seasonal_pattern(season_time)

def noise(time, noise_level=1, seed=None):
    rnd = np.random.RandomState(seed)
    return rnd.randn(len(time)) * noise_level

time = np.arange(10 * 365 + 1, dtype="float32")
baseline = 10
series = trend(time, 0.1)
baseline = 10
amplitude = 40
slope = 0.005
noise_level = 3

# Create the series
series = baseline + trend(time, slope) + seasonality(time, period=365, amplitude=amplitude)
# Update with noise
series += noise(time, noise_level, seed=51)

We split the series into train and validation, where the training data is upto 3000 and validation is rest of the data. Then, we plot it.

split_time = 3000
time_train = time[:split_time]
x_train = series[:split_time]
time_valid = time[split_time:]
x_valid = series[split_time:]

window_size = 20
batch_size = 32
shuffle_buffer_size = 1000

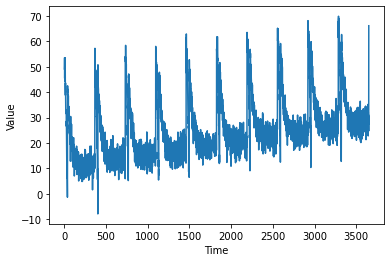

plot_series(time, series)

As seen in the previous exercise, we can create an instance of tensorflow dataset with below code, which has inbuilt batching and shuffling.

def windowed_dataset(series, window_size, batch_size, shuffle_buffer):
  dataset = tf.data.Dataset.from_tensor_slices(series)
  dataset = dataset.window(window_size + 1, shift=1, drop_remainder=True)
  dataset = dataset.flat_map(lambda window: window.batch(window_size + 1))
  dataset = dataset.shuffle(shuffle_buffer).map(lambda window: (window[:-1], window[-1]))
  dataset = dataset.batch(batch_size).prefetch(1)
  return dataset

Why did we use a Lambda layer? An RNN expects 3 dimensions:

• batch-size
• the number of timestamps
• series dimensionality So, since we are providing only 2 dimensions using the dataset, we can use a Lambda Layer to increase the dimension of input Layer, to suit the RNN.

tf.keras.backend.clear_session() is used so that the backend is cleared and models does not affect each other. Here, you can also see tf.keras.callbacks.LearningRateScheduler. The function is … as the training progresses, the learning rate is changed via the callback function depending on the current epoch. So, inintial lr was $10^{-8}$. The as the epoch number changes, lr also changes according to the formula : 1e-8 * 10**(epoch / 20)

tf.keras.backend.clear_session()
tf.random.set_seed(51)
np.random.seed(51)

tf.keras.backend.clear_session()
dataset = windowed_dataset(x_train, window_size, batch_size, shuffle_buffer_size)

model = tf.keras.models.Sequential([
  tf.keras.layers.Lambda(lambda x: tf.expand_dims(x, axis=-1),
                      input_shape=[None]),
  tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(32, return_sequences=True)),
  tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(32)),
  tf.keras.layers.Dense(1),
  tf.keras.layers.Lambda(lambda x: x * 10.0)
])

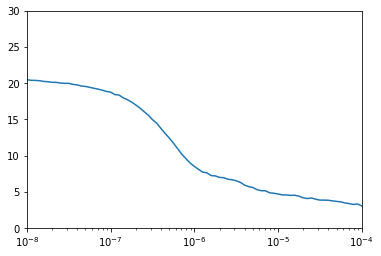

lr_schedule = tf.keras.callbacks.LearningRateScheduler(
    lambda epoch: 1e-8 * 10**(epoch / 20))
optimizer = tf.keras.optimizers.SGD(lr=1e-8, momentum=0.9)
model.compile(loss=tf.keras.losses.Huber(),
              optimizer=optimizer,
              metrics=["mae"])
history = model.fit(dataset, epochs=100, callbacks=[lr_schedule])

Epoch 1/100
94/94 [==============================] - 3s 29ms/step - loss: 20.4602 - mae: 20.8828 - lr: 1.0000e-08
Epoch 2/100
94/94 [==============================] - 3s 28ms/step - loss: 20.3766 - mae: 20.8543 - lr: 1.1220e-08
Epoch 3/100
94/94 [==============================] - 3s 29ms/step - loss: 20.3643 - mae: 20.8218 - lr: 1.2589e-08
Epoch 4/100
94/94 [==============================] - 3s 29ms/step - loss: 20.3237 - mae: 20.7851 - lr: 1.4125e-08
Epoch 5/100
94/94 [==============================] - 3s 28ms/step - loss: 20.2210 - mae: 20.7436 - lr: 1.5849e-08
Epoch 6/100
94/94 [==============================] - 3s 28ms/step - loss: 20.1817 - mae: 20.6964 - lr: 1.7783e-08
Epoch 7/100
94/94 [==============================] - 3s 28ms/step - loss: 20.1016 - mae: 20.6429 - lr: 1.9953e-08
Epoch 8/100
94/94 [==============================] - 3s 29ms/step - loss: 20.0922 - mae: 20.5823 - lr: 2.2387e-08
Epoch 9/100
94/94 [==============================] - 3s 28ms/step - loss: 20.0004 - mae: 20.5140 - lr: 2.5119e-08
Epoch 10/100
94/94 [==============================] - 3s 28ms/step - loss: 19.9554 - mae: 20.4385 - lr: 2.8184e-08
Epoch 11/100
94/94 [==============================] - 3s 28ms/step - loss: 19.9592 - mae: 20.3585 - lr: 3.1623e-08
Epoch 12/100
94/94 [==============================] - 3s 28ms/step - loss: 19.8126 - mae: 20.2777 - lr: 3.5481e-08
Epoch 13/100
94/94 [==============================] - 3s 29ms/step - loss: 19.7425 - mae: 20.1968 - lr: 3.9811e-08
Epoch 14/100
94/94 [==============================] - 3s 28ms/step - loss: 19.5884 - mae: 20.1109 - lr: 4.4668e-08
Epoch 15/100
94/94 [==============================] - 3s 28ms/step - loss: 19.5268 - mae: 20.0163 - lr: 5.0119e-08
Epoch 16/100
94/94 [==============================] - 3s 28ms/step - loss: 19.4060 - mae: 19.9109 - lr: 5.6234e-08
Epoch 17/100
94/94 [==============================] - 3s 28ms/step - loss: 19.2756 - mae: 19.7932 - lr: 6.3096e-08
Epoch 18/100
94/94 [==============================] - 3s 29ms/step - loss: 19.1609 - mae: 19.6618 - lr: 7.0795e-08
Epoch 19/100
94/94 [==============================] - 3s 29ms/step - loss: 19.0090 - mae: 19.5148 - lr: 7.9433e-08
Epoch 20/100
94/94 [==============================] - 3s 29ms/step - loss: 18.8467 - mae: 19.3502 - lr: 8.9125e-08
Epoch 21/100
94/94 [==============================] - 3s 28ms/step - loss: 18.7482 - mae: 19.1656 - lr: 1.0000e-07
Epoch 22/100
94/94 [==============================] - 3s 28ms/step - loss: 18.4040 - mae: 18.9583 - lr: 1.1220e-07
Epoch 23/100
94/94 [==============================] - 3s 29ms/step - loss: 18.3458 - mae: 18.7249 - lr: 1.2589e-07
Epoch 24/100
94/94 [==============================] - 3s 29ms/step - loss: 17.9591 - mae: 18.4621 - lr: 1.4125e-07
Epoch 25/100
94/94 [==============================] - 3s 28ms/step - loss: 17.7048 - mae: 18.1655 - lr: 1.5849e-07
Epoch 26/100
94/94 [==============================] - 3s 28ms/step - loss: 17.3764 - mae: 17.8312 - lr: 1.7783e-07
Epoch 27/100
94/94 [==============================] - 3s 28ms/step - loss: 16.9770 - mae: 17.4554 - lr: 1.9953e-07
Epoch 28/100
94/94 [==============================] - 3s 28ms/step - loss: 16.5467 - mae: 17.0350 - lr: 2.2387e-07
Epoch 29/100
94/94 [==============================] - 3s 28ms/step - loss: 16.0490 - mae: 16.5714 - lr: 2.5119e-07
Epoch 30/100
94/94 [==============================] - 3s 28ms/step - loss: 15.5696 - mae: 16.0630 - lr: 2.8184e-07
Epoch 31/100
94/94 [==============================] - 3s 28ms/step - loss: 14.9412 - mae: 15.5113 - lr: 3.1623e-07
Epoch 32/100
94/94 [==============================] - 3s 28ms/step - loss: 14.4644 - mae: 14.9140 - lr: 3.5481e-07
Epoch 33/100
94/94 [==============================] - 3s 29ms/step - loss: 13.7479 - mae: 14.2730 - lr: 3.9811e-07
Epoch 34/100
94/94 [==============================] - 3s 30ms/step - loss: 13.0584 - mae: 13.5900 - lr: 4.4668e-07
Epoch 35/100
94/94 [==============================] - 3s 29ms/step - loss: 12.4185 - mae: 12.8770 - lr: 5.0119e-07
Epoch 36/100
94/94 [==============================] - 3s 29ms/step - loss: 11.7088 - mae: 12.1503 - lr: 5.6234e-07
Epoch 37/100
94/94 [==============================] - 3s 28ms/step - loss: 10.9549 - mae: 11.4246 - lr: 6.3096e-07
Epoch 38/100
94/94 [==============================] - 3s 29ms/step - loss: 10.1918 - mae: 10.7178 - lr: 7.0795e-07
Epoch 39/100
94/94 [==============================] - 3s 29ms/step - loss: 9.5596 - mae: 10.0572 - lr: 7.9433e-07
Epoch 40/100
94/94 [==============================] - 3s 28ms/step - loss: 8.9681 - mae: 9.4767 - lr: 8.9125e-07
Epoch 41/100
94/94 [==============================] - 3s 29ms/step - loss: 8.4933 - mae: 8.9762 - lr: 1.0000e-06
Epoch 42/100
94/94 [==============================] - 3s 28ms/step - loss: 8.0897 - mae: 8.5559 - lr: 1.1220e-06
Epoch 43/100
94/94 [==============================] - 3s 28ms/step - loss: 7.7067 - mae: 8.2186 - lr: 1.2589e-06
Epoch 44/100
94/94 [==============================] - 3s 28ms/step - loss: 7.6117 - mae: 7.9611 - lr: 1.4125e-06
Epoch 45/100
94/94 [==============================] - 3s 29ms/step - loss: 7.2321 - mae: 7.7611 - lr: 1.5849e-06
Epoch 46/100
94/94 [==============================] - 3s 29ms/step - loss: 7.1898 - mae: 7.6089 - lr: 1.7783e-06
Epoch 47/100
94/94 [==============================] - 3s 28ms/step - loss: 6.9884 - mae: 7.4794 - lr: 1.9953e-06
Epoch 48/100
94/94 [==============================] - 3s 28ms/step - loss: 6.9385 - mae: 7.3684 - lr: 2.2387e-06
Epoch 49/100
94/94 [==============================] - 3s 28ms/step - loss: 6.7348 - mae: 7.2586 - lr: 2.5119e-06
Epoch 50/100
94/94 [==============================] - 3s 29ms/step - loss: 6.6561 - mae: 7.1513 - lr: 2.8184e-06
Epoch 51/100
94/94 [==============================] - 3s 28ms/step - loss: 6.5186 - mae: 7.0292 - lr: 3.1623e-06
Epoch 52/100
94/94 [==============================] - 3s 29ms/step - loss: 6.2941 - mae: 6.8203 - lr: 3.5481e-06
Epoch 53/100
94/94 [==============================] - 3s 28ms/step - loss: 5.9168 - mae: 6.3736 - lr: 3.9811e-06
Epoch 54/100
94/94 [==============================] - 3s 29ms/step - loss: 5.7016 - mae: 6.1635 - lr: 4.4668e-06
Epoch 55/100
94/94 [==============================] - 3s 29ms/step - loss: 5.5810 - mae: 5.9845 - lr: 5.0119e-06
Epoch 56/100
94/94 [==============================] - 3s 28ms/step - loss: 5.2817 - mae: 5.7677 - lr: 5.6234e-06
Epoch 57/100
94/94 [==============================] - 3s 28ms/step - loss: 5.1438 - mae: 5.6485 - lr: 6.3096e-06
Epoch 58/100
94/94 [==============================] - 3s 29ms/step - loss: 5.1344 - mae: 5.5023 - lr: 7.0795e-06
Epoch 59/100
94/94 [==============================] - 3s 29ms/step - loss: 4.8486 - mae: 5.3295 - lr: 7.9433e-06
Epoch 60/100
94/94 [==============================] - 3s 29ms/step - loss: 4.7960 - mae: 5.2320 - lr: 8.9125e-06
Epoch 61/100
94/94 [==============================] - 3s 29ms/step - loss: 4.6901 - mae: 5.1469 - lr: 1.0000e-05
Epoch 62/100
94/94 [==============================] - 3s 28ms/step - loss: 4.5663 - mae: 5.0500 - lr: 1.1220e-05
Epoch 63/100
94/94 [==============================] - 3s 29ms/step - loss: 4.5622 - mae: 5.0578 - lr: 1.2589e-05
Epoch 64/100
94/94 [==============================] - 3s 28ms/step - loss: 4.5000 - mae: 5.0037 - lr: 1.4125e-05
Epoch 65/100
94/94 [==============================] - 3s 29ms/step - loss: 4.5189 - mae: 5.0130 - lr: 1.5849e-05
Epoch 66/100
94/94 [==============================] - 3s 28ms/step - loss: 4.3868 - mae: 4.8267 - lr: 1.7783e-05
Epoch 67/100
94/94 [==============================] - 3s 29ms/step - loss: 4.1656 - mae: 4.6171 - lr: 1.9953e-05
Epoch 68/100
94/94 [==============================] - 3s 29ms/step - loss: 4.0647 - mae: 4.5466 - lr: 2.2387e-05
Epoch 69/100
94/94 [==============================] - 3s 29ms/step - loss: 4.1426 - mae: 4.6046 - lr: 2.5119e-05
Epoch 70/100
94/94 [==============================] - 3s 28ms/step - loss: 3.9723 - mae: 4.4540 - lr: 2.8184e-05
Epoch 71/100
94/94 [==============================] - 3s 28ms/step - loss: 3.8489 - mae: 4.3447 - lr: 3.1623e-05
Epoch 72/100
94/94 [==============================] - 3s 29ms/step - loss: 3.8480 - mae: 4.3093 - lr: 3.5481e-05
Epoch 73/100
94/94 [==============================] - 3s 28ms/step - loss: 3.8283 - mae: 4.3224 - lr: 3.9811e-05
Epoch 74/100
94/94 [==============================] - 3s 28ms/step - loss: 3.7423 - mae: 4.1808 - lr: 4.4668e-05
Epoch 75/100
94/94 [==============================] - 3s 28ms/step - loss: 3.6687 - mae: 4.1301 - lr: 5.0119e-05
Epoch 76/100
94/94 [==============================] - 3s 28ms/step - loss: 3.6071 - mae: 4.0604 - lr: 5.6234e-05
Epoch 77/100
94/94 [==============================] - 3s 28ms/step - loss: 3.4510 - mae: 3.9372 - lr: 6.3096e-05
Epoch 78/100
94/94 [==============================] - 3s 28ms/step - loss: 3.3652 - mae: 3.8122 - lr: 7.0795e-05
Epoch 79/100
94/94 [==============================] - 3s 28ms/step - loss: 3.2506 - mae: 3.7256 - lr: 7.9433e-05
Epoch 80/100
94/94 [==============================] - 3s 28ms/step - loss: 3.3137 - mae: 3.7916 - lr: 8.9125e-05
Epoch 81/100
94/94 [==============================] - 3s 29ms/step - loss: 3.0446 - mae: 3.5303 - lr: 1.0000e-04
Epoch 82/100
94/94 [==============================] - 3s 28ms/step - loss: 3.0396 - mae: 3.5044 - lr: 1.1220e-04
Epoch 83/100
94/94 [==============================] - 3s 29ms/step - loss: 3.1091 - mae: 3.5500 - lr: 1.2589e-04
Epoch 84/100
94/94 [==============================] - 3s 29ms/step - loss: 3.0488 - mae: 3.5263 - lr: 1.4125e-04
Epoch 85/100
94/94 [==============================] - 3s 28ms/step - loss: 3.0680 - mae: 3.5280 - lr: 1.5849e-04
Epoch 86/100
94/94 [==============================] - 3s 28ms/step - loss: 3.0208 - mae: 3.4821 - lr: 1.7783e-04
Epoch 87/100
94/94 [==============================] - 3s 28ms/step - loss: 3.0580 - mae: 3.5221 - lr: 1.9953e-04
Epoch 88/100
94/94 [==============================] - 3s 28ms/step - loss: 2.9100 - mae: 3.3843 - lr: 2.2387e-04
Epoch 89/100
94/94 [==============================] - 3s 29ms/step - loss: 3.2118 - mae: 3.6719 - lr: 2.5119e-04
Epoch 90/100
94/94 [==============================] - 3s 28ms/step - loss: 3.1488 - mae: 3.6115 - lr: 2.8184e-04
Epoch 91/100
94/94 [==============================] - 3s 28ms/step - loss: 2.9512 - mae: 3.4205 - lr: 3.1623e-04
Epoch 92/100
94/94 [==============================] - 3s 29ms/step - loss: 3.0505 - mae: 3.5465 - lr: 3.5481e-04
Epoch 93/100
94/94 [==============================] - 3s 28ms/step - loss: 2.8636 - mae: 3.3496 - lr: 3.9811e-04
Epoch 94/100
94/94 [==============================] - 3s 29ms/step - loss: 2.9379 - mae: 3.3702 - lr: 4.4668e-04
Epoch 95/100
94/94 [==============================] - 3s 28ms/step - loss: 2.9892 - mae: 3.4724 - lr: 5.0119e-04
Epoch 96/100
94/94 [==============================] - 3s 29ms/step - loss: 2.9214 - mae: 3.4063 - lr: 5.6234e-04
Epoch 97/100
94/94 [==============================] - 3s 28ms/step - loss: 2.8961 - mae: 3.3721 - lr: 6.3096e-04
Epoch 98/100
94/94 [==============================] - 3s 28ms/step - loss: 2.9407 - mae: 3.3576 - lr: 7.0795e-04
Epoch 99/100
94/94 [==============================] - 3s 28ms/step - loss: 2.8388 - mae: 3.2893 - lr: 7.9433e-04
Epoch 100/100
94/94 [==============================] - 3s 29ms/step - loss: 3.2231 - mae: 3.6984 - lr: 8.9125e-04

plt.semilogx(history.history["lr"], history.history["loss"])
plt.axis([1e-8, 1e-4, 0, 30])

(1e-08, 0.0001, 0.0, 30.0)

We, then plot the loss vs learning rate and find out that loss was less and quite stable at $10^{-5}$. Using this as our learning rate, we train for 500 epochs.

tf.keras.backend.clear_session()
tf.random.set_seed(51)
np.random.seed(51)

tf.keras.backend.clear_session()
dataset = windowed_dataset(x_train, window_size, batch_size, shuffle_buffer_size)

model = tf.keras.models.Sequential([
  tf.keras.layers.Lambda(lambda x: tf.expand_dims(x, axis=-1),
                      input_shape=[None]),
   tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(32, return_sequences=True)),
  tf.keras.layers.Bidirectional(tf.keras.layers.LSTM(32)),
  tf.keras.layers.Dense(1),
  tf.keras.layers.Lambda(lambda x: x * 100.0)
])


model.compile(loss="mse", optimizer=tf.keras.optimizers.SGD(lr=1e-5, momentum=0.9),metrics=["mae"])
history = model.fit(dataset,epochs=500,verbose=1)

Epoch 1/500
94/94 [==============================] - 3s 29ms/step - loss: 260.9243 - mae: 10.1378
Epoch 2/500
94/94 [==============================] - 3s 29ms/step - loss: 33.4073 - mae: 3.9017
Epoch 3/500
94/94 [==============================] - 3s 29ms/step - loss: 27.5539 - mae: 3.5518
Epoch 4/500
94/94 [==============================] - 3s 28ms/step - loss: 31.6568 - mae: 3.9759
Epoch 5/500
94/94 [==============================] - 3s 29ms/step - loss: 27.0354 - mae: 3.5515
Epoch 6/500
94/94 [==============================] - 3s 30ms/step - loss: 25.6458 - mae: 3.4461
Epoch 7/500
94/94 [==============================] - 3s 29ms/step - loss: 31.8559 - mae: 3.9959
Epoch 8/500
94/94 [==============================] - 3s 29ms/step - loss: 27.8153 - mae: 3.6121
Epoch 9/500
94/94 [==============================] - 3s 31ms/step - loss: 29.5963 - mae: 3.8187
Epoch 10/500
94/94 [==============================] - 3s 28ms/step - loss: 27.9760 - mae: 3.6757
Epoch 11/500
94/94 [==============================] - 3s 29ms/step - loss: 27.4339 - mae: 3.6672
Epoch 12/500
94/94 [==============================] - 3s 29ms/step - loss: 25.1888 - mae: 3.4160
Epoch 13/500
94/94 [==============================] - 3s 29ms/step - loss: 28.0933 - mae: 3.7027
Epoch 14/500
94/94 [==============================] - 3s 29ms/step - loss: 26.9125 - mae: 3.5711
Epoch 15/500
94/94 [==============================] - 3s 29ms/step - loss: 25.7826 - mae: 3.4787
Epoch 16/500
94/94 [==============================] - 3s 29ms/step - loss: 29.2301 - mae: 3.8158
Epoch 17/500
94/94 [==============================] - 3s 29ms/step - loss: 24.0560 - mae: 3.3191
Epoch 18/500
94/94 [==============================] - 3s 29ms/step - loss: 26.5630 - mae: 3.5473
Epoch 19/500
94/94 [==============================] - 3s 29ms/step - loss: 25.6564 - mae: 3.4825
Epoch 20/500
94/94 [==============================] - 3s 29ms/step - loss: 25.0230 - mae: 3.4211
Epoch 21/500
94/94 [==============================] - 3s 28ms/step - loss: 26.9035 - mae: 3.5829
Epoch 22/500
94/94 [==============================] - 3s 29ms/step - loss: 24.9078 - mae: 3.3448
Epoch 23/500
94/94 [==============================] - 3s 29ms/step - loss: 27.8602 - mae: 3.7013
Epoch 24/500
94/94 [==============================] - 3s 29ms/step - loss: 24.9127 - mae: 3.4339
Epoch 25/500
94/94 [==============================] - 3s 29ms/step - loss: 24.1448 - mae: 3.3488
Epoch 26/500
94/94 [==============================] - 3s 29ms/step - loss: 25.8940 - mae: 3.5183
Epoch 27/500
94/94 [==============================] - 3s 28ms/step - loss: 29.4972 - mae: 3.7865
Epoch 28/500
94/94 [==============================] - 3s 29ms/step - loss: 27.9105 - mae: 3.7044
Epoch 29/500
94/94 [==============================] - 3s 29ms/step - loss: 23.8223 - mae: 3.3226
Epoch 30/500
94/94 [==============================] - 3s 29ms/step - loss: 23.4867 - mae: 3.2755
Epoch 31/500
94/94 [==============================] - 3s 29ms/step - loss: 24.9789 - mae: 3.3859
Epoch 32/500
94/94 [==============================] - 3s 29ms/step - loss: 27.9910 - mae: 3.7034
Epoch 480/500
94/94 [==============================] - 3s 28ms/step - loss: 20.2361 - mae: 3.0457
Epoch 481/500
94/94 [==============================] - 3s 28ms/step - loss: 19.5367 - mae: 2.9773
Epoch 482/500
94/94 [==============================] - 3s 28ms/step - loss: 19.6291 - mae: 2.9588
Epoch 483/500
94/94 [==============================] - 3s 28ms/step - loss: 19.4482 - mae: 2.9261
Epoch 484/500
94/94 [==============================] - 3s 28ms/step - loss: 20.6441 - mae: 3.0734
Epoch 485/500
94/94 [==============================] - 3s 28ms/step - loss: 19.0524 - mae: 2.9070
Epoch 486/500
94/94 [==============================] - 3s 28ms/step - loss: 19.2163 - mae: 2.9132
Epoch 487/500
94/94 [==============================] - 3s 28ms/step - loss: 19.7663 - mae: 2.9852
Epoch 488/500
94/94 [==============================] - 3s 29ms/step - loss: 19.1162 - mae: 2.9086
Epoch 489/500
94/94 [==============================] - 3s 28ms/step - loss: 19.5258 - mae: 2.9212
Epoch 490/500
94/94 [==============================] - 3s 29ms/step - loss: 19.7166 - mae: 2.9476
Epoch 491/500
94/94 [==============================] - 3s 29ms/step - loss: 20.2588 - mae: 2.9383
Epoch 492/500
94/94 [==============================] - 3s 28ms/step - loss: 21.1324 - mae: 3.1124
Epoch 493/500
94/94 [==============================] - 3s 28ms/step - loss: 19.6550 - mae: 2.9468
Epoch 494/500
94/94 [==============================] - 3s 29ms/step - loss: 20.0007 - mae: 2.9948
Epoch 495/500
94/94 [==============================] - 3s 28ms/step - loss: 19.0840 - mae: 2.8932
Epoch 496/500
94/94 [==============================] - 3s 28ms/step - loss: 19.6511 - mae: 2.9502
Epoch 497/500
94/94 [==============================] - 3s 28ms/step - loss: 19.2156 - mae: 2.9267
Epoch 498/500
94/94 [==============================] - 3s 28ms/step - loss: 19.6160 - mae: 2.9396
Epoch 499/500
94/94 [==============================] - 3s 28ms/step - loss: 20.4251 - mae: 3.0397
Epoch 500/500
94/94 [==============================] - 3s 28ms/step - loss: 19.3343 - mae: 2.9032

Using what our model learnt, we are going to predict the validation set and plot them side by side

forecast = []
results = []
for time in range(len(series) - window_size):
  forecast.append(model.predict(series[time:time + window_size][np.newaxis]))

forecast = forecast[split_time-window_size:]
results = np.array(forecast)[:, 0, 0]

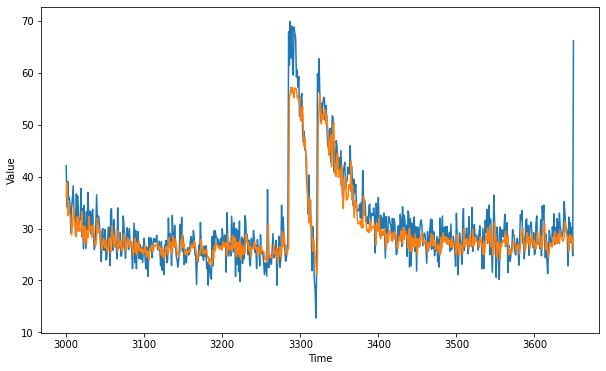

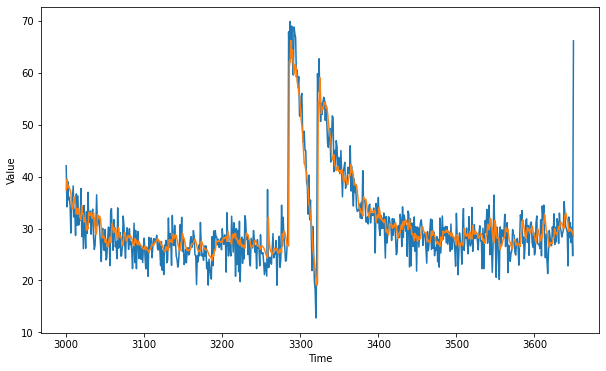

plt.figure(figsize=(10, 6))

plot_series(time_valid, x_valid)
plot_series(time_valid, results)

Next, we calculate the MAE of predicted validation set.

tf.keras.metrics.mean_absolute_error(x_valid, results).numpy()

2.9205346

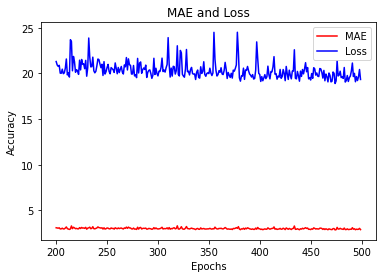

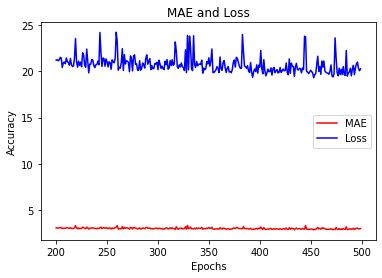

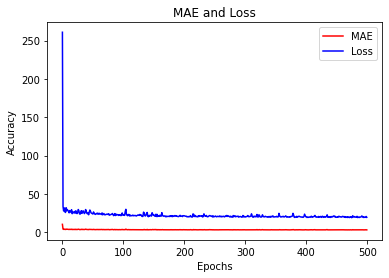

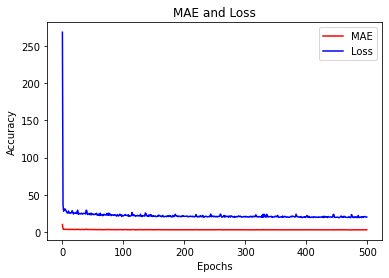

The next code is to plot the mae and loss vs epochs to see how well the model has fared.

import matplotlib.image  as mpimg
import matplotlib.pyplot as plt

#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
mae=history.history['mae']
loss=history.history['loss']

epochs=range(len(loss)) # Get number of epochs

#------------------------------------------------
# Plot MAE and Loss
#------------------------------------------------
plt.plot(epochs, mae, 'r')
plt.plot(epochs, loss, 'b')
plt.title('MAE and Loss')
plt.xlabel("Epochs")
plt.ylabel("Accuracy")
plt.legend(["MAE", "Loss"])

plt.figure()

epochs_zoom = epochs[200:]
mae_zoom = mae[200:]
loss_zoom = loss[200:]

#------------------------------------------------
# Plot Zoomed MAE and Loss
#------------------------------------------------
plt.plot(epochs_zoom, mae_zoom, 'r')
plt.plot(epochs_zoom, loss_zoom, 'b')
plt.title('MAE and Loss')
plt.xlabel("Epochs")
plt.ylabel("Accuracy")
plt.legend(["MAE", "Loss"])

plt.figure()

<Figure size 432x288 with 0 Axes>

<Figure size 432x288 with 0 Axes>

Next, we are going to try a model with only 1 LSTM.

tf.keras.backend.clear_session()
dataset = windowed_dataset(x_train, window_size, batch_size, shuffle_buffer_size)

model = tf.keras.models.Sequential([
  tf.keras.layers.Lambda(lambda x: tf.expand_dims(x, axis=-1),
                      input_shape=[None]),
  tf.keras.layers.LSTM(32),
  tf.keras.layers.Dense(1),
  tf.keras.layers.Lambda(lambda x: x * 100.0)
])


model.compile(loss="mse", optimizer=tf.keras.optimizers.SGD(lr=1e-5, momentum=0.9),metrics=["mae"])
history = model.fit(dataset,epochs=500,verbose=1)

Epoch 1/500
94/94 [==============================] - 1s 10ms/step - loss: 420.0227 - mae: 11.4754
Epoch 2/500
94/94 [==============================] - 1s 10ms/step - loss: 46.2899 - mae: 4.9492
Epoch 3/500
94/94 [==============================] - 1s 10ms/step - loss: 45.5109 - mae: 4.9844
Epoch 4/500
94/94 [==============================] - 1s 10ms/step - loss: 35.8790 - mae: 4.3274
Epoch 5/500
94/94 [==============================] - 1s 10ms/step - loss: 29.1591 - mae: 3.8956
Epoch 6/500
94/94 [==============================] - 1s 10ms/step - loss: 40.4956 - mae: 4.6770
Epoch 7/500
94/94 [==============================] - 1s 10ms/step - loss: 37.0422 - mae: 4.2873
Epoch 8/500
94/94 [==============================] - 1s 11ms/step - loss: 56.7832 - mae: 5.7634
Epoch 9/500
94/94 [==============================] - 1s 10ms/step - loss: 31.7145 - mae: 4.0724
Epoch 10/500
94/94 [==============================] - 1s 10ms/step - loss: 35.5975 - mae: 4.3444
Epoch 11/500
94/94 [==============================] - 1s 10ms/step - loss: 32.8992 - mae: 4.1317
Epoch 12/500
94/94 [==============================] - 1s 10ms/step - loss: 29.7249 - mae: 3.8881
Epoch 13/500
94/94 [==============================] - 1s 10ms/step - loss: 44.0893 - mae: 4.9510
Epoch 14/500
94/94 [==============================] - 1s 10ms/step - loss: 27.9967 - mae: 3.7647
Epoch 15/500
94/94 [==============================] - 1s 10ms/step - loss: 28.1039 - mae: 3.7495
Epoch 16/500
94/94 [==============================] - 1s 10ms/step - loss: 31.3236 - mae: 4.0196
Epoch 17/500
94/94 [==============================] - 1s 10ms/step - loss: 36.3006 - mae: 4.2143
Epoch 18/500
94/94 [==============================] - 1s 11ms/step - loss: 31.6467 - mae: 4.0461
Epoch 19/500
94/94 [==============================] - 1s 10ms/step - loss: 30.5163 - mae: 3.9626
Epoch 20/500
94/94 [==============================] - 1s 10ms/step - loss: 24.6787 - mae: 3.4657
Epoch 21/500
94/94 [==============================] - 1s 10ms/step - loss: 28.7513 - mae: 3.8333
Epoch 22/500
94/94 [==============================] - 1s 10ms/step - loss: 31.4697 - mae: 3.9998
Epoch 23/500
94/94 [==============================] - 1s 10ms/step - loss: 27.4395 - mae: 3.7176
Epoch 24/500
94/94 [==============================] - 1s 10ms/step - loss: 28.2855 - mae: 3.7348
Epoch 25/500
94/94 [==============================] - 1s 10ms/step - loss: 29.6966 - mae: 3.9268
Epoch 26/500
94/94 [==============================] - 1s 10ms/step - loss: 32.6525 - mae: 4.1553
Epoch 27/500
94/94 [==============================] - 1s 10ms/step - loss: 31.1877 - mae: 4.0860
Epoch 28/500
94/94 [==============================] - 1s 11ms/step - loss: 26.6748 - mae: 3.6007
Epoch 29/500
94/94 [==============================] - 1s 10ms/step - loss: 28.1945 - mae: 3.7915
Epoch 30/500
94/94 [==============================] - 1s 10ms/step - loss: 28.2063 - mae: 3.8052
Epoch 31/500
94/94 [==============================] - 1s 10ms/step - loss: 31.3194 - mae: 4.0922
Epoch 480/500
94/94 [==============================] - 1s 10ms/step - loss: 24.6763 - mae: 3.4747
Epoch 481/500
94/94 [==============================] - 1s 10ms/step - loss: 23.9664 - mae: 3.4155
Epoch 482/500
94/94 [==============================] - 1s 10ms/step - loss: 22.4143 - mae: 3.2561
Epoch 483/500
94/94 [==============================] - 1s 10ms/step - loss: 23.1216 - mae: 3.3269
Epoch 484/500
94/94 [==============================] - 1s 10ms/step - loss: 25.3370 - mae: 3.4934
Epoch 485/500
94/94 [==============================] - 1s 10ms/step - loss: 23.9429 - mae: 3.3677
Epoch 486/500
94/94 [==============================] - 1s 10ms/step - loss: 25.8685 - mae: 3.5414
Epoch 487/500
94/94 [==============================] - 1s 10ms/step - loss: 23.8408 - mae: 3.4060
Epoch 488/500
94/94 [==============================] - 1s 10ms/step - loss: 26.8756 - mae: 3.6528
Epoch 489/500
94/94 [==============================] - 1s 10ms/step - loss: 23.8095 - mae: 3.3624
Epoch 490/500
94/94 [==============================] - 1s 10ms/step - loss: 24.6054 - mae: 3.4412
Epoch 491/500
94/94 [==============================] - 1s 10ms/step - loss: 22.9528 - mae: 3.3084
Epoch 492/500
94/94 [==============================] - 1s 10ms/step - loss: 23.2477 - mae: 3.3044
Epoch 493/500
94/94 [==============================] - 1s 10ms/step - loss: 22.7466 - mae: 3.2731
Epoch 494/500
94/94 [==============================] - 1s 10ms/step - loss: 26.4276 - mae: 3.6968
Epoch 495/500
94/94 [==============================] - 1s 12ms/step - loss: 27.1720 - mae: 3.7213
Epoch 496/500
94/94 [==============================] - 1s 10ms/step - loss: 23.7589 - mae: 3.3997
Epoch 497/500
94/94 [==============================] - 1s 10ms/step - loss: 27.8912 - mae: 3.7350
Epoch 498/500
94/94 [==============================] - 1s 11ms/step - loss: 24.7745 - mae: 3.5177
Epoch 499/500
94/94 [==============================] - 1s 10ms/step - loss: 25.0025 - mae: 3.4904
Epoch 500/500
94/94 [==============================] - 1s 11ms/step - loss: 24.7565 - mae: 3.4528

forecast = []
results = []
for time in range(len(series) - window_size):
  forecast.append(model.predict(series[time:time + window_size][np.newaxis]))

forecast = forecast[split_time-window_size:]
results = np.array(forecast)[:, 0, 0]


plt.figure(figsize=(10, 6))

plot_series(time_valid, x_valid)
plot_series(time_valid, results)

tf.keras.metrics.mean_absolute_error(x_valid, results).numpy()

3.1546707

import matplotlib.image  as mpimg
import matplotlib.pyplot as plt

#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
mae=history.history['mae']
loss=history.history['loss']

epochs=range(len(loss)) # Get number of epochs

#------------------------------------------------
# Plot MAE and Loss
#------------------------------------------------
plt.plot(epochs, mae, 'r')
plt.plot(epochs, loss, 'b')
plt.title('MAE and Loss')
plt.xlabel("Epochs")
plt.ylabel("Accuracy")
plt.legend(["MAE", "Loss"])

plt.figure()

epochs_zoom = epochs[200:]
mae_zoom = mae[200:]
loss_zoom = loss[200:]

#------------------------------------------------
# Plot Zoomed MAE and Loss
#------------------------------------------------
plt.plot(epochs_zoom, mae_zoom, 'r')
plt.plot(epochs_zoom, loss_zoom, 'b')
plt.title('MAE and Loss')
plt.xlabel("Epochs")
plt.ylabel("Accuracy")
plt.legend(["MAE", "Loss"])

plt.figure()

<Figure size 432x288 with 0 Axes>

<Figure size 432x288 with 0 Axes>
